What is CMap

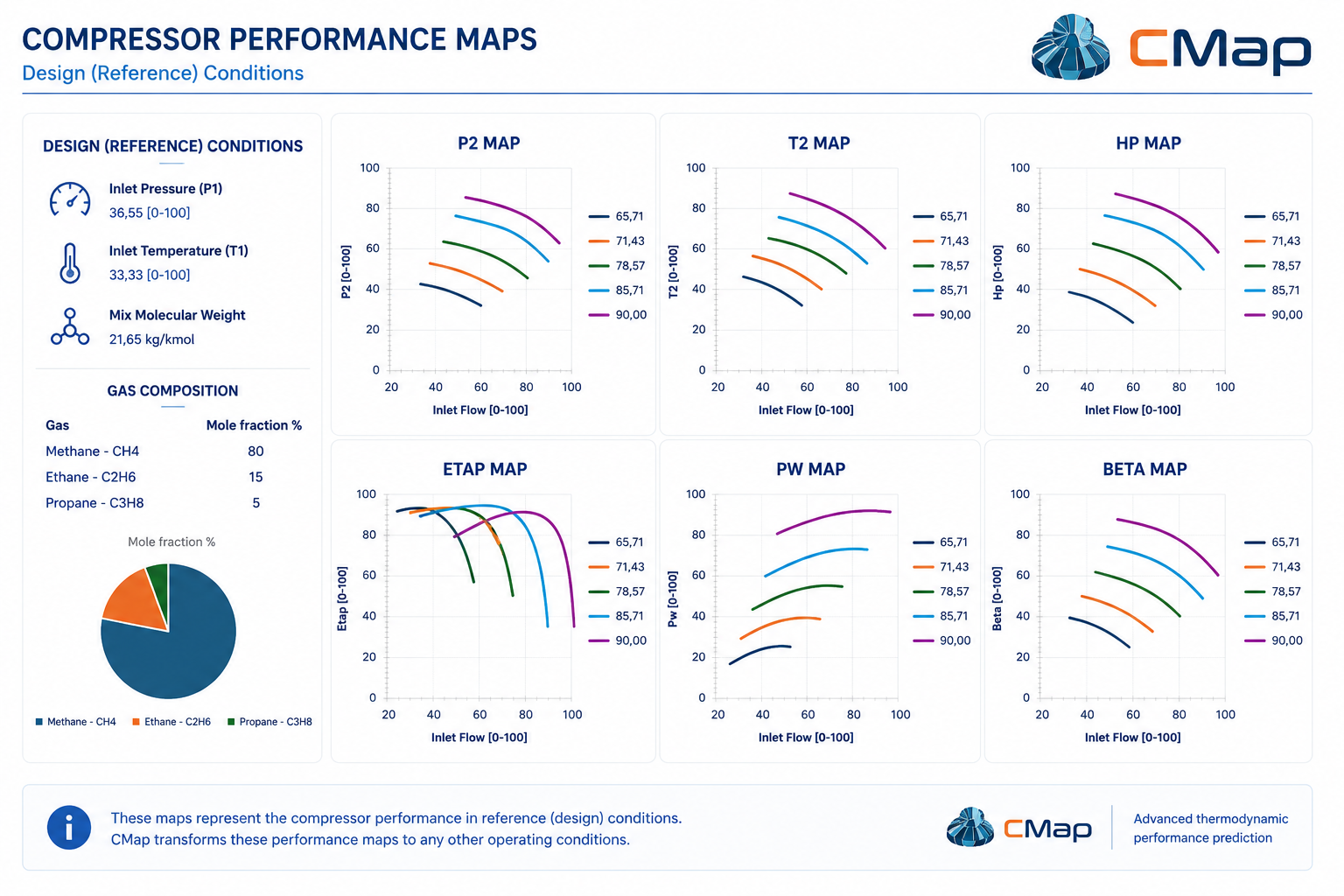

One of the main difficulties for the analysis of centrifugal compressors operative performances comes from the fact that usually expected performances are described in terms of graphs of discharge pressures, discharge temperatures, polytrophic heads, efficiencies and absorbed power vs flow, related to the design inlet gas conditions, i.e. gas mix composition, inlet pressure and temperature.
However compressor actual performances are strictly related to actual field inlet gas condition that often are different from design ones.
The comparison of field measurements to expected values becomes than complicated because the expected performances need to be adjusted to the actual suction field conditions.

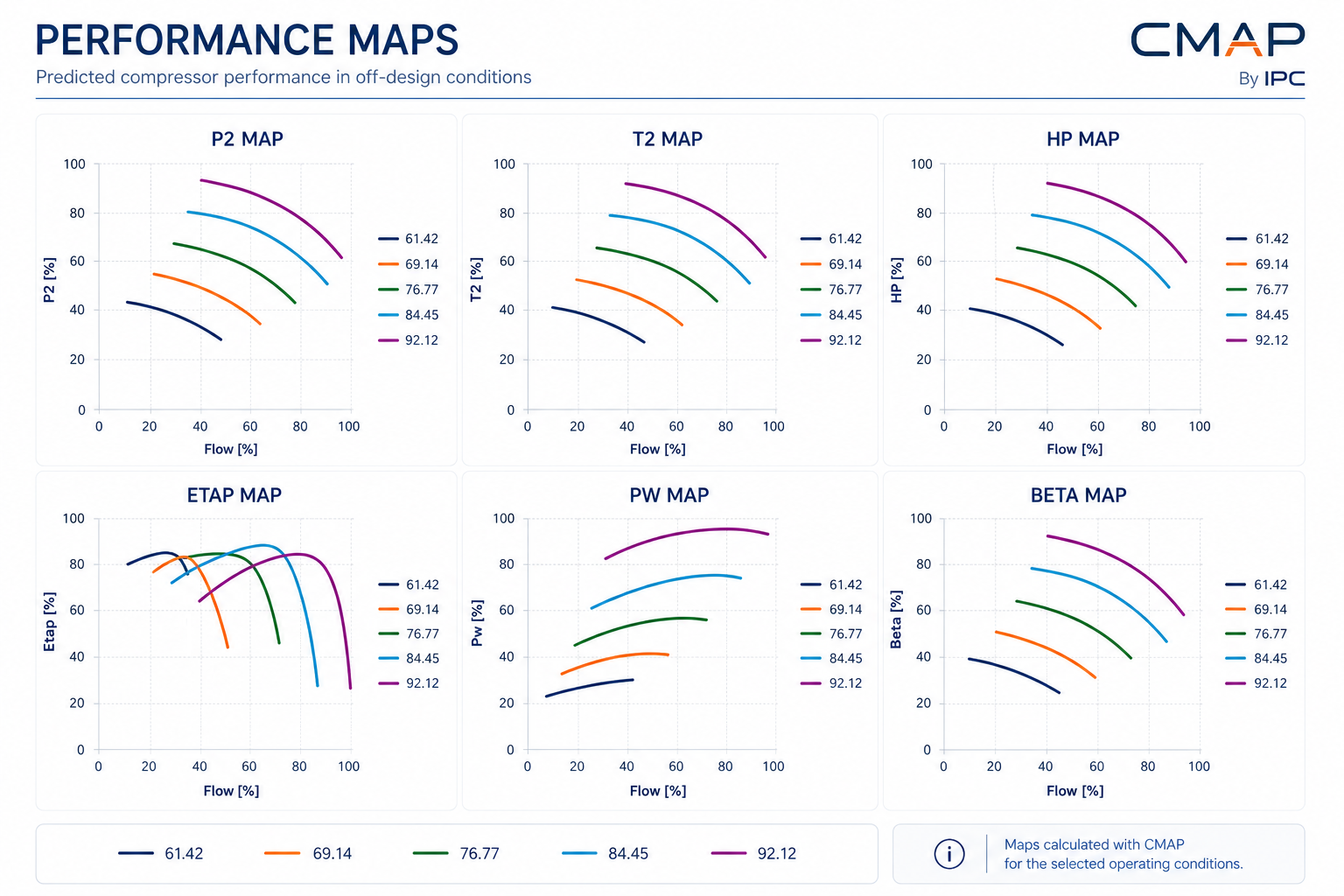

CMAP software allows, starting from the reference performances, to predict centrifugal compressor performances in actual conditions and comparison to design measured ones. This capabilities will be useful for diagnostic purposes, as well for machine protection purposes.
The execution of this evaluation is quite complex and requires the availability of calculation algorithms able to predict both machine behavior and real gas thermodynamic properties under different operative conditions.
This cause a lack of analytical support capability for evaluation of machine healthy and performances and a consequent lack of support for maintenance decision making.
News & Papers
We are pleased to announce that IPC has been apponted as distributor and reseller for RBTS in Italy and North Africa and surrounding countries
RBTS with is more than 30 years of activity, is a well recognized excellence in the machinery softwares and advanced engineering services. All the IPC team is very glad to join the partership with RBTS. RBTS is a market leader in software for dynamic analysis of rotors and advanced engineering services. Established in 1986 Rotor…
Simulation of compressor performance test
M. Di Febo and P. Paganini "Simulation of compressor performance test" TURBOMACHINERY BLOG, 2017 JANUARY Compressor test, usually performed at OEM facilities, are in general performed to validate the performance as stated by the OEM in the machinery specification sheets Read More
Quantitative assessment of compressor performance
M. Di Febo and P. Paganini "Quantitative assessment of compressor performance" TURBOMACHINERY BLOG, 2017 JANUARY Today machinery maintenance works require improvements in the evaluation of the machine conditions Read More
Under the influence
M. Di Febo and P. Paganini "Under the influence" HYDROCARBON ENGINEERING, 2015 FEBRUARY The influence of inlet parameters on centrifugal compressor surge limit lines Read More
Influence of inlet parameters on centrifugal compressor surge limit line
M. Di Febo, P. Paganini and G. Esposito "Optimal Analysis" HYDROCARBON ENGINEERING, 2014 DECEMBER The optimisation of centrifugal compressor performance analysis Read More
Influence of inlet parameters on centrifugal compressor surge limit line
M. Di Febo and P. Paganini "Influence of inlet parameters on centrifugal compressor surge limit line" COMPRESSOR TECH 2, 2013 JUNE Case study uses numerical analysis to examine effects of variations Read More
Protecting high-pressure centrifugal compressors
M. Di Febo and P. Paganini "Protecting high-pressure centrifugal compressors" TURBOMACHINERY, 2013 MARCH/APRIL A software algorithm can predict performance under varying thermodynamic and inlet gas conditions Read More
Influence of inlet parameters on centrifugal compressor surge limit line, numerical analysis
M. Di Febo and P. Paganini "Influence of inlet parameters on centrifugal compressor surge limit line, numerical analysis" GAS MACHINERY, 2013 FIRST QUARTER Actual centrifugal compressors anti-surge protection systems are based on the Surge Limit line (SSL) Read More
Centrifugal Compressor Performance
M. Di Febo and P. Paganini "Centrifugal Compressor Performance" TURBOMACHINERY, 2012 SEPTEMBER/OCTOBER Why actual running status often differs from design conditions Read More
Compressors: Why they don’t operate as designed?
M. Di Febo and P. Paganini "Compressors: Why they don’t operate as designed?" TURBOMACHINERY Blog, 2012 AUGUST One of the main difficulties of analyzing the performance of centrifugal compressors begins with how the data are presented. Read More
Prediction of Centrifugal Compressor Performance
A. Di Febo, M. Di Febo, P. Paganini, A. Pedone and G. Esposito "Prediction of Centrifugal Compressor Performance" COMPRESSOR TECH 2, 2012 MAY A new software, Cmap, developed by IPC, is a tool for PC windows based design to perform centrifugal compressor performance evaluations easily and quickly Read More
Prediction of Centrifugal Compressor Performances and applications for test, surge protection and machinery diagnostic
A. Di Febo, M. Di Febo, P. Paganini, A. Pedone and G. Esposito "Prediction of Centrifugal Compressor Performances and applications for test, surge protection and machinery diagnostic" GAS MACHINERY, 2012 FIRST QUARTER One of the main difficulties for the analysis of centrifugal compressors operative performances comes from the fact that usually expected performances are described...…
CMAP allows to overcome this problems using rigorous calculation and implementing the most modern thermodynamic theories and machine models without limiting approximations. It provides also to the centrifugal compressor analyst or industry user a powerful and easy tool to predict the machine performances under different operative conditions.
It allows also some additional tasks useful to compare centrifugal compressor expected/design performances with field data measured ones. Analysts and engineers that use CMAP will have all quantitative information about machine status necessary to define diagnostic strategies and maintenance activities.
